GRABBER TRACK TOOLS



8,000 PINS PER CHARGE OR 3,000 PINS PER CHARGE?
(WELL, THAT'S WHAT WE CALL A "NO-BRAINER")

    NEARLY 3X THE RUN RATE AS COMPETING TOOLS EQUALS LESS CHARGING DOWNTIME

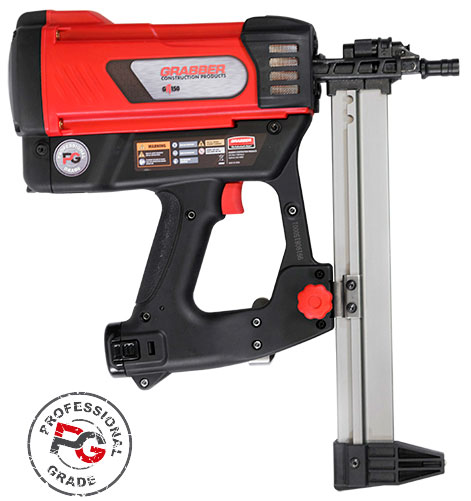

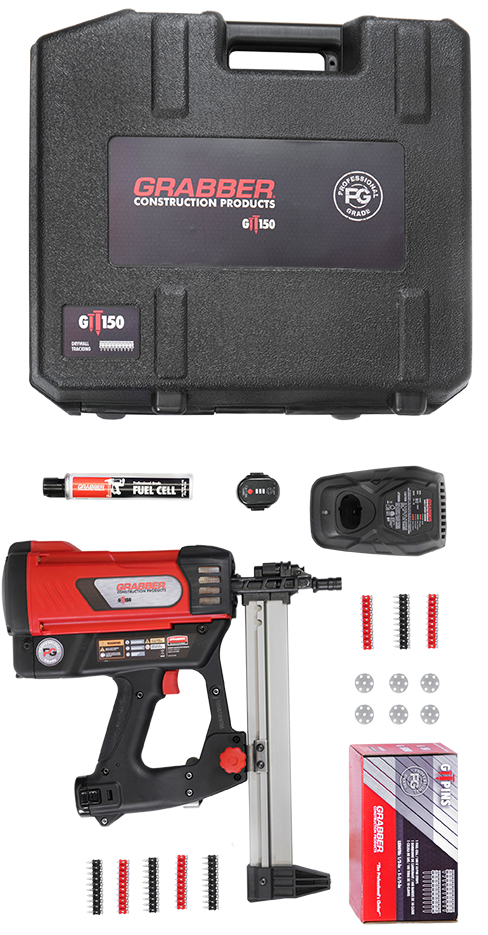

Grabber’s new GTT150 and GTT150HD (105 Joules) high-performance gas track tools are the tools you need to do the job pinning track to concrete, block and steel. Both tools feature industry leading lithium ion battery technology, extending battery life to 8,000 shots and advanced 4-year shelf life fuel cells. GTT150 and GTT150HD accept the same 1/2˝ to 1- 1/2˝ pins include a depth-of-drive feature for precise depth control.




The reliable high-quality gas track tool you need on the job day in and day out. The lithium ion battery technology drives in 8,000 pins per charge compared to 3,000 for most other competing systems, and will charge in about an hour. Less charging down time means more time on the job. Advanced fuel cell technology provides an unprecedented 4-year shelf life compared to 1 year for most other competing systems.


BENEFITS


  • Power to shoot into concrete and steel
  • Fuel cell delivers a 4-year shelf life, and 1,000 shots
  • Lithium ion battery delivers 8,000 shots per charge – nearly 3x more than competing systems
  • GTTPins are made with heat-treated steel and MH galvanized for higher quality
  • 1-hour battery recharge time
  • No license required

FEATURES


  • High performance gas powered tool
  • 2 lithium ion batteries included
  • Battery life gauge included
  • 4-year fuel cell shelf life
  • Depth-of-drive adjustment
  • ½˝ to 1-1/2˝ pin capacity
  • Quick release 40-pin magazine
  • Light weight – 8.3 lbs.
  • Magnetic lath adaptor available
  • Belt clip included
  • 2-year warranty



APPLICATIONS


  • Track to concrete and steel
  • Plywood to concrete or block
  • Furring strips to concrete and block
  • Lath to block or concrete (with magnetic adaptor)

GTT150  SPECIFICATIONS


LENGTH

15.74"

WEIGHT

8.32

HEIGHT

14"

FASTENER COMPATIBILITY

1/2"-1-1/2"

SHOTS PER BATTERY

8,000

SHOTS PER FUEL CELL

1,000

POWER

90 Joules

FUEL CELL SHELF LIFE

4-year shelf life

BATTERY CHARGE TIME

1-hour

MAG CAPACITY

40

APPLICATIONS

Shoot into concrete and steel

WARRANTY

2-year

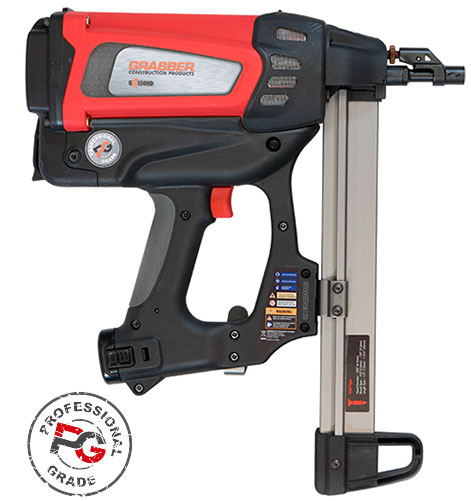

The GTT150HD delivers 105 joules of reliable hard-hitting power you need to shoot in to hard concrete and structural steel. The lithium ion battery technology drives in 8,000 pins per charge compared to 3,000 for most other competing systems, and will charge in about an hour. Less charging down time means more time on the job. Advanced fuel cell technology provides an unprecedented 4-year shelf life compared to 1 year for most other competing systems.


BENEFITS


  • Power to shoot into hard concrete & structural steel
  • Fuel cell delivers a 4-year shelf life and 1,000 shots
  • Lithium ion battery delivers 8,000 shots per charge – nearly 3x more than competing systems
  • GTTPins are made with heat-treated steel and MH galvanized for higher quality
  • 1-hour battery recharge time
  • No license required

FEATURES


  • High performance gas powered tool
  • 2 lithium ion batteries included
  • Battery life gauge included
  • 4-year fuel cell shelf life
  • Depth-of-drive adjustment
  • ½˝ to 1-1/2˝ pin capacity
  • Quick release 40-pin magazine
  • Light weight – 8.8 lbs.
  • Magnetic lath adaptor available
  • Belt clip included
  • 2-year warranty



APPLICATIONS


  • Track to hard concrete and structural steel
  • Plywood to concrete or block
  • Furring strips to concrete and block
  • Lath to block or concrete (with magnetic adaptor)

GTT150HD SPECIFICATIONS


LENGTH

17.3"

WEIGHT

8.8

HEIGHT

14.96"

FASTENER COMPATIBILITY

1/2"-1-1/2"

SHOTS PER BATTERY

8,000

SHOTS PER FUEL CELL

1,000

POWER

105 Joules

FUEL CELL SHELF LIFE

4-year shelf life

BATTERY TYPE

Lithium Ion Battery

BATTERY CHARGE TIME

1-hour

MAG CAPACITY

40

APPLICATIONS



Shoots into concrete, hard concrete, steel and structural steel

WARRANTY

2-year

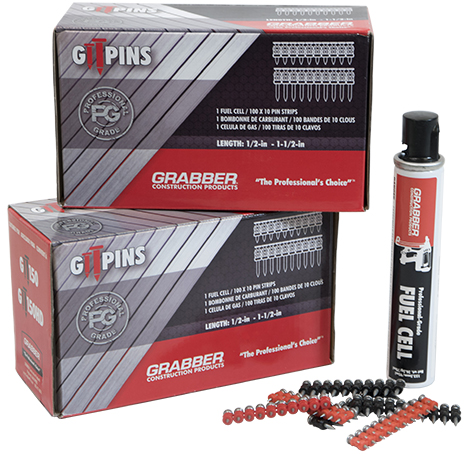

Grabber’s GTTPINS will do the job, working with the new GTT150 and GTT150HD Gas Track Tools, allowing tracking to concrete, block or steel. You’ll also improve your efficiency with less loading time and 8,000 shots per fully charged battery.

Today’s contractors are looking for faster, better, money saving products allowing them to be more competitive in today’s challenging market place. Grabber’s line of innovative fasteners do just that. With Grabber GTTPINS, predrilled holes and time-consuming screwing are a thing of the past. All Grabber GTTPINS are made with heat-treated steel with a ballistic point which allows the point to penetrate the steel cleanly and quickly for installations 7-10 times faster than conventional methods. The force of friction creates the bond between the steel and the fastener for maximum holding power.


BENEFITS


  • High-quality heat-treated 1065 steel pins penetrate hard concrete and structural steel without bending or breaking
  • All pins are mechanically galvanized against corrosion
  • Both the GTT150 and GTT150HD use the same ½˝ to 1-1/2˝ pins
  • .102 shank diameter pins deliver excellent performance values
  • Each box of pins come with a 4-year shelf life fuel cell

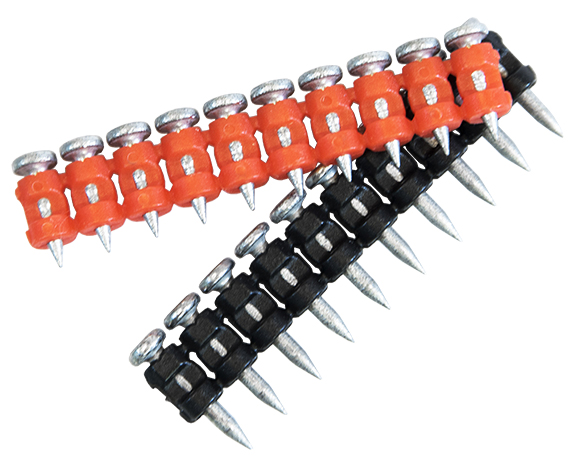

GRABBER GTTPINS


GTTTP012



.102 - .120 X 1/2” STEP SHANK ZINC STEEL PIN

GTTP034



.102 X 3/4” SMOOTH SHANK ZINC PIN

GTTPFP034



.102 X 3/4” STEP SHANK ZINC PIN

GTTP100



.102 X 1” SMOOTH SHANK ZINC PIN

GTTP114



.102 X 1-1/4” SMOOTH SHANK ZINC PIN

GTTP112



.102 X 1-1/2” SMOOTH SHANK ZINC PIN


All items above are 1M to a box and 5M to a case - each 1M box contains one fuel cell.

FASTENER SPECIFICATIONS

Grabber GTTPINS 1/2” - 1-1/2”

Shank diamters .102" - Smooth & .102" - 120" Smooth Step

Head Diameter .250#

The above parts feature plastic strip collation and offer 10 fasteners per collated unit

LATH MAGNETIC ADAPTERS AND WASHERS

GTTLDW 1" Lath disc washer (1M per box, 5M per case)

GTTLA Magnetic lath washer adapter for GTT150

GTTHDLA Magnetic lath washer adapter for GTT150HD



ALLOWABLE CAPACITY


COMPREHENSIVE STRENGTH

PART NUMBER

CONCRETE COMPREHENSIVE

GTTP034, GTTP100,

GTTP114, GTTP112





4000 PSI

6000 PSI

TENSION

SHEAR

TENSION

SHEAR

52

77

50

89

PART NUMBER

STEEL COMPREHENSIVE STRENGTH

GTTP012





1/4" Thick Steel

TENSION

SHEAR

162

419




CODE COMPLAINT


Tested To:

  • ASTM E 119 - 11 Section 8.1 Standard Test Method For Stregth of power actuated fasteners installed in structural members
  • ASTM E1190 Section 8.1 Standard Test Method For Stregth of power actuated fasteners installed in structural members
  • ASTM E 18-12 Standard test method for rockwell hardness of
    metallic materials
