Grabber®

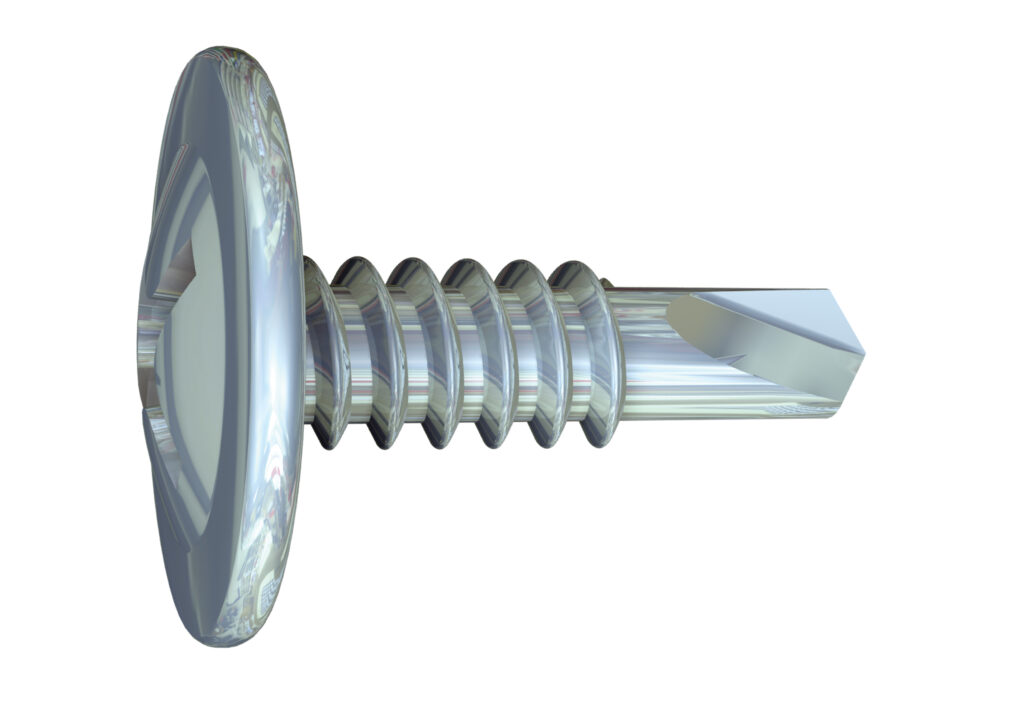

10 x 3/4-in Phillips, Modified Truss Head, Fine Thread, Drill Point Clear Zinc Screws (Collated)
Item Number: C234DZ10
Metal to metal framing or attaches metal lath to 33-68 mil (20-14 ga.) steel studs.
Specifications
| Application | Metal to Metal |
|---|---|
| Bit Tip | #2 Phillips |
| Head Type | Modified Truss Head |
| Thread Type | Fine |
| Coating | Clear Zinc |
| Point Type | Superpoint Drill Point |
| Gauge | 10 |
| Metric Gauge | 4.8 |
| Length | 3/4 in. |
| Head Diameter | 0.364 in. |
| Package Type | Collated Box |
| Amount | 1000 |
| Product Line | SuperDrive® Collated Fasteners |
| Threads Per Inch | 16 |
Benefits
- Grabber’s Pro-Fit™ # 2 Phillips recess is a precision recess designed for better bit engagement resulting in less wobble or strip-out.
- The reduced modified truss head design provides a larger load bearing surface for better holding power, but is slightly smaller to allow use in tighter spaces.
- Grabber drill point modified truss head screws begin with the best available materials and conform to strict manufacturing requirements in thread forming. Extra sharp threads mean screws will drive faster and will hold better.
- Consistently formed extra sharp drill point starts and drills easily into heavy gauge metal framing.
Recommended Application
Framing steel 33 mil or thicker. K-lath installation in steel substrate. For use with Grabber's Mach 1 collated attachment.
Installation Guidelines
- Use a standard screwgun with Grabber's SuperDrive attachment or an impact driver with Grabber's Mach 1 attachment. Suggested screwgun specification for optimal performance – Size #10, up to 2,500 RPM. Some care required considering the large amount of torque an impact driver delivers.
- The head is fully seated when the bearing surface of the head is flush with the work surface.
- The fastener must penetrate beyond the metal three full thread pitches.
- Overdriving may result in failure of the fastener or stripout within the substrate.
Special Features
Reduced Modified Truss Head - Collated
Trademark
All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 & C954 requirements. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.
