Grabber®

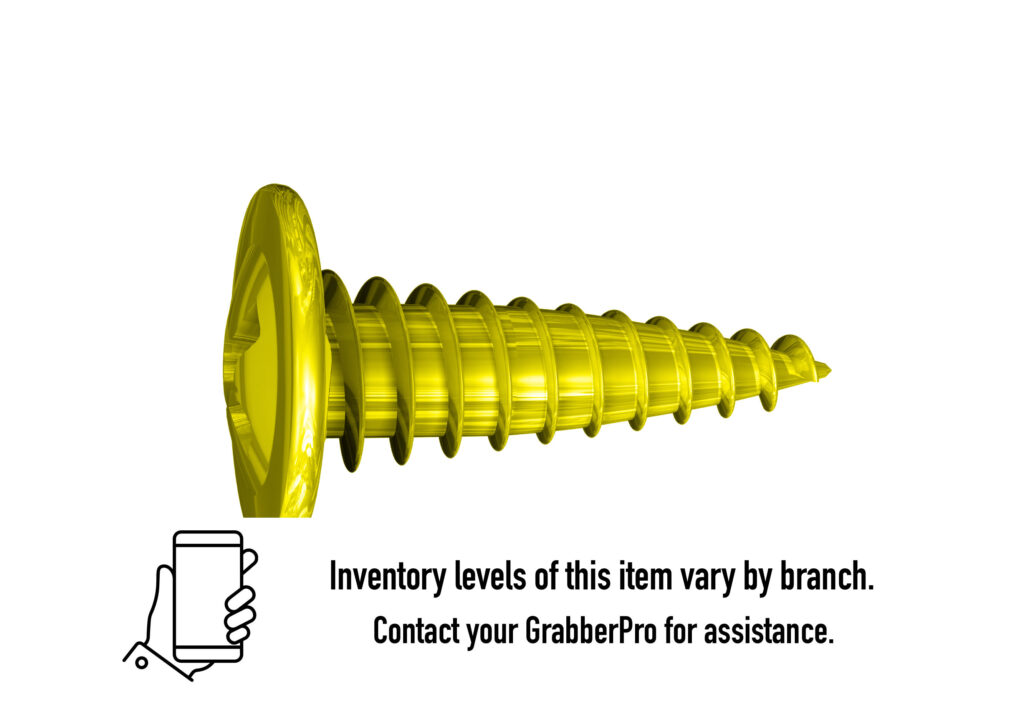

10 x 3/4-in X-Drive, Revised Flat Pan Head, Fine Thread, Sharp Point, Yellow Zinc Screws (Collated)
Item Number: CFP101875XSYZ
Metal to metal up to 0.033-in.
Specifications
| Application | Metal to Metal |
|---|---|
| Bit Tip | X-Drive |
| Head Type | Revised Flat Pan Head |
| Thread Type | Fine |
| Coating | Yellow Zinc |
| Point Type | Sharp Point |
| Gauge | 10 |
| Metric Gauge | 4.8 |
| Length | 3/4 in. |
| Head Diameter | 0.344 in. |
| Package Type | Collated Box |
| Amount | 1000 |
| Product Line | SuperDrive® Collated Fasteners |
| Threads Per Inch | 18 |
Benefits
- Grabber’s X-Drive is a precision recess providing for a consistent, reliable performance and is less likely to wobble or strip-out.
- The revised flat pan head provides a larger load bearing surface & underhead serrations lock tight for better holding power.
- Grabber self-piercing screws begin with the best available materials and conform to strict manufacturing requirements in thread forming. Extra sharp threads mean screws will drive faster and will hold better.
- Grabber's Sharp point starts faster and drives easily into light-gauge metal framing.
Recommended Application
Metal to metal applications up to 0.033-in.
Installation Guidelines
- Use a standard screwgun with a depth sensitive nose piece. Suggested screwgun specification for optimal performance – Size #7 - #10, up to 4,000 RPM.
- The head is fully seated when the bearing surface of the of the head is flush with the work surface.
- The fastener must penetrate beyond the metal three full thread pitches.
- Overdriving may result in failure of the fastener or stripout within the substrate.
Special Features
Underhead serrations - Collated
Trademark
All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 performance requirements. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.
