Grabber®

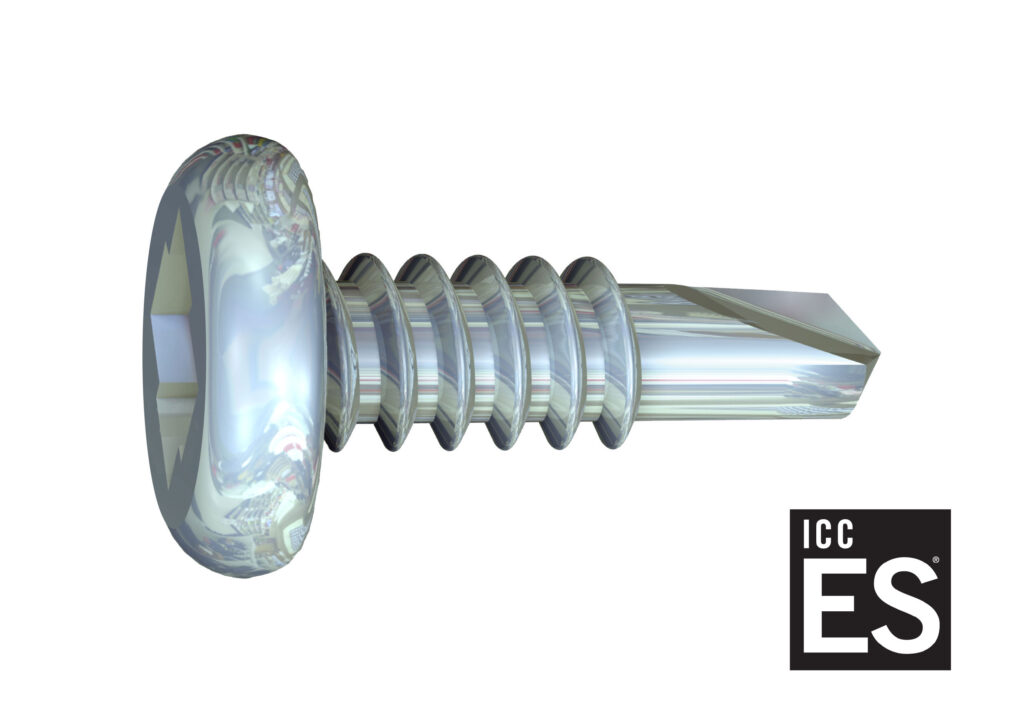

10 x 5/8-in LOX Drive, Flat Pan Head, Fine Thread, Tek 3 Drill Point Clear Zinc Screws (Collated)
Item Number: CFP101858JBWZ
Attaches heavy gauge 33-97 mil (20-12 ga.) metal to metal. Unique flat pan head design.
ICC-ES Evaluated
ESR-1271 Report
Specifications
| Application | Metal to Metal |
|---|---|
| Bit Tip | #2 LOX® |
| Head Type | Flat Pan Head |
| Thread Type | Fine |
| Coating | Clear Zinc |
| Point Type | Drill Point |
| Gauge | 10 |
| Length | 5/8 in. |
| Head Diameter | 0.364 in. |
| Package Type | Collated Box |
| Amount | 1000 |
| Product Line | SuperDrive® Collated Fasteners |
| Threads Per Inch | 18 |
Available in other lengths
- 5/8 in. CFP101858JBWZ
- 3/4 in. CFP101875JBWZ
Benefits
- Grabber's LOX® recess provides ultimate torque.
- Grabber screws are more evenly heat treated and tempered resulting consistent and reliable performance.
- Grabber drill point metal framing screws begin with the best available materials and conform to strict manufacturing requirements in thread forming. Extra sharp threads mean screws will drive faster and will hold better.
- Consistently formed extra sharp drill point starts and drills easily into heavy gauge metal framing.
Recommended Application
Steel to steel connection. Steel framing, straping, fixtures and more.
Installation Guidelines
- Suggested screwgun specification for optimal performance – Sizes #6 - #10, Up to 2500 RPM, Size #12, Up to 1800 RPM.
- The screw is fully seated when the bearing surface of the head is flush with the substrait.
- Overdriving may result in failure of the fastener or failure of the gypsum board.
- The fastener must penetrate beyond the metal three full thread pitches.
Special Features
Collated
Trademark
All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 requirements. Specific fasteners are listed in ICC ESR-1271; please check the report for listed item numbers. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.
