Grabber®

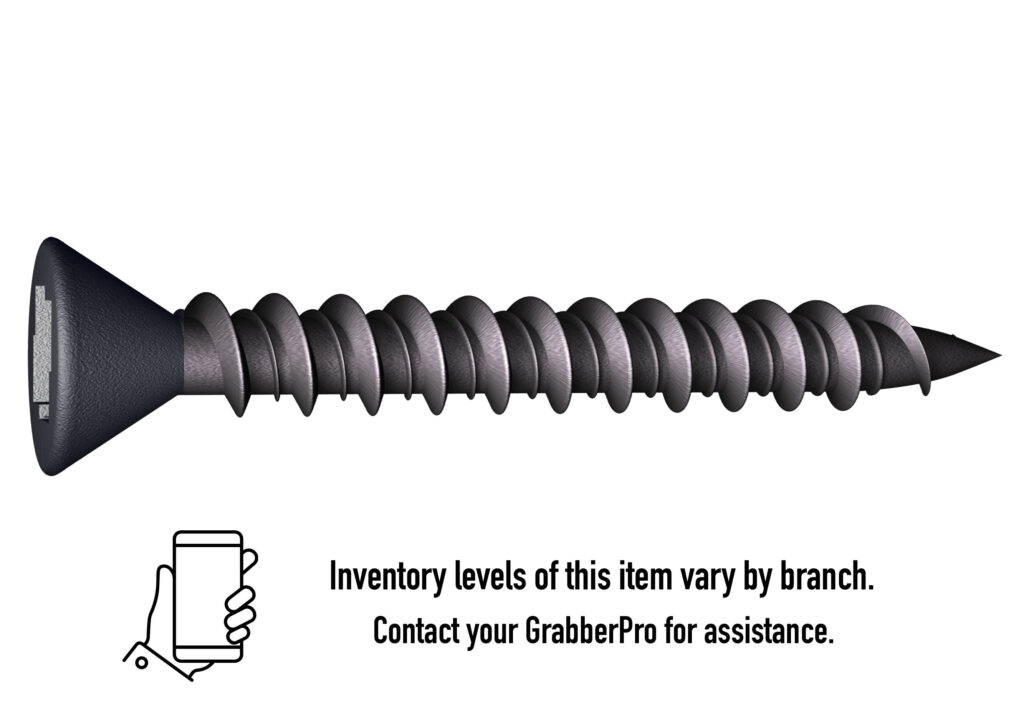

7 x 1-1/4-in LOX Drive, Hi-Lo Thread Phosphate Screws (Collated)
Item Number: C7125UL2
Attaches underlayment to wood or light-gauge metal.
Specifications
| Application | Subfloor to Wood |
|---|---|
| Bit Tip | #2 LOX® |
| Head Type | Flat Head |
| Thread Type | High-Low Alternating |
| Coating | Phosphate |
| Gauge | 7 |
| Metric Gauge | 3.8 |
| Length | 1 1/4 in. |
| Head Diameter | 0.276 in. |
| Package Type | Collated Box |
| Amount | 1000 |
| Product Line | SuperDrive® Collated Fasteners |
| Threads Per Inch | 16 Hi-Lo |
Benefits
- LOX® recess was designed for today's screw guns and for applications where high-torque is required. LOX® will not strip out like most other recesses.
- The flat head design provides better holding power in sheathing to light-gauge metal applications. Special nibs self countersink as the screw seats.
- Extra sharp alternating or high-low threads are designed to drive quicker and provide better holding power in sheathing to light-gauge metal applications.
- Grabber’s sharp Twinfast point starts immediately, penetrates quickly, and is much less likely to flop over.
Recommended Application
Sheathing to wood or light-gauge steel 18-30 mil (25-20 gauge)
Installation Guidelines
Use a standard screwgun with a depth sensitive nose piece. Suggested screwgun specification for optimal performance - Size #7, up to 4,000 RPM.
- Overdriving may result in failure of the fastener.
- The fastener must penetrate beyond the metal a minimum of three full threads.
Special Features
Nibs - Collated
Trademark
All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.
