Grabber®

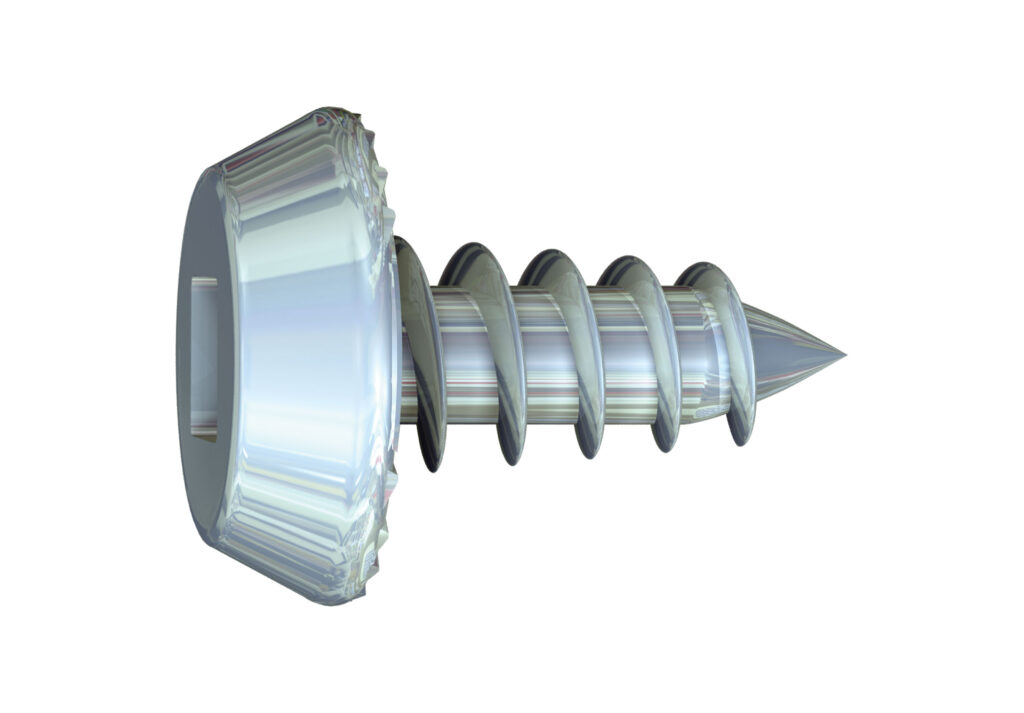

8 x 9/16-in Square, Pan Framing Head, Fine Thread, Streaker® Point Clear Zinc Screws (Bulk)
Item Number: 21Z
Cold-formed steel light-gauge metal to metal framing up to 0.033-in.
Specifications
| Application | Metal to Metal |
|---|---|
| Bit Tip | #2 Square |
| Head Type | Pan Head |
| Thread Type | Fine |
| Coating | Clear Zinc |
| Point Type | 23° Streaker® Point |
| Gauge | 8 |
| Metric Gauge | 4.2 |
| Length | 9/16 in. |
| Head Diameter | 0.314 in. |
| Package Type | Bulk Box |
| Amount | 10000 |
| Threads Per Inch | 15 |
Available in other lengths
- 9/16 in. 21Z
- 1 1/2 in. 908QZ
Benefits
- The No. 2 square recess is a precision recess designed for secure bit engagement in light gauge metal to metal applications.
- Under head serrations lock tight in light gauge metal to metal applications.
- Grabber fine thread pan framing head screws begin with the best available materials and conform to strict manufacturing requirements in thread forming. Extra sharp twin lead thread screws drive faster and hold better in light gauge metal.
- Grabber’s extra sharp 23˚ Streaker® point design starts immediately and is much less likely to flop over.
Recommended Application
Cold-formed, light gauge steel framing. HVAC and sheet metal.
Installation Guidelines
- Use a standard screwgun with a depth sensitive nose piece. Suggested screwgun specification for optimal performance – Size #7 - #10, up to 4,000 RPM.
- The head is fully seated when the bearing surface of the head is flush with the work surface.
- Overdriving may result in failure of the fastener or failure of the gypsum board.
Special Features
Serrations Under Head
Trademark
All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 requirements. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.
