Scorpion®

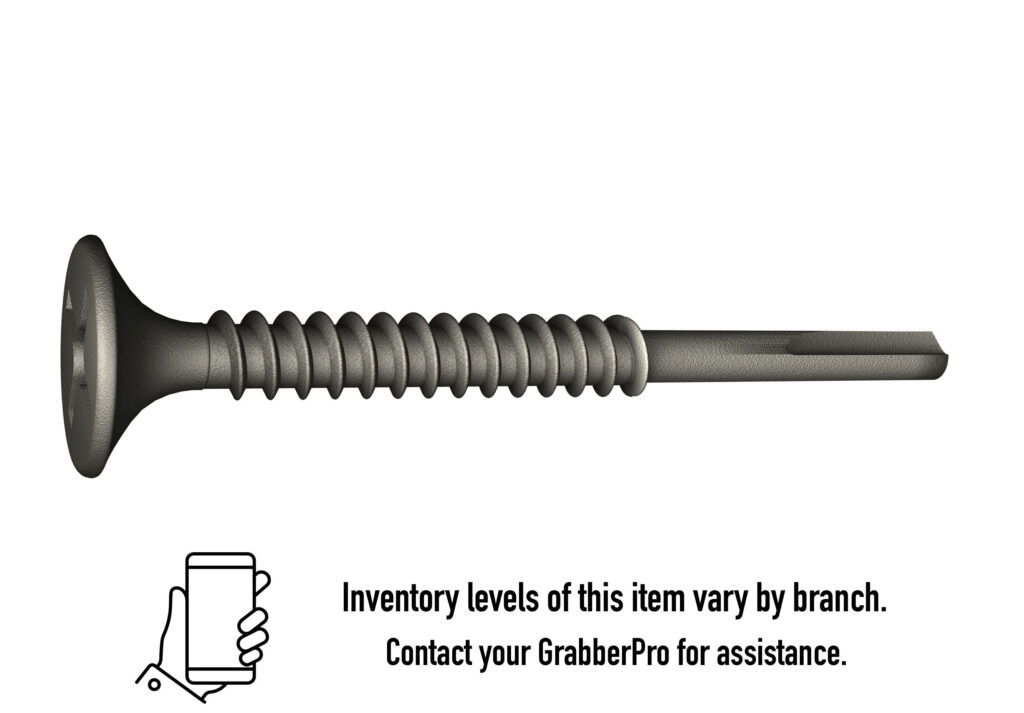

10 x 2-in Phillips, Bugle Head, Fine Thread, #3.5 Pilot Point, NanoGard™ Screws (Mini Bulk)
Item Number: T3PB102M
Scorpion Type T3PB Leader Point screws are designed for attaching sheathing to heavy gauge metal. NanoGard™ exterior grade coating improves corrosion resistance.
Specifications
| Application | Drywall To Heavy-Gauge Metal |
|---|---|
| Bit Tip | Phillips |
| Head Type | Bugle Head |
| Thread Type | Fine |
| Coating | NanoGard™ |
| Point Type | #3.5 Pilot Point |
| Gauge | 10 |
| Metric Gauge | 4.8 |
| Length | 2 in. |
| Head Diameter | 0.343 in. |
| Package Type | Pack |
| Amount | 1500 |
| Threads Per Inch | 16 |
Available in other lengths
- 2 in. T3PB102M
- 3 5/8 in. T3PB10358M
Benefits
- The Phillips recess is a precision recess designed for better bit engagement resulting in less wobble or strip-out.
- The Bugle Head screws are more evenly heat treated and tempered resulting consistent and reliable performance.
- NanoGard™ exterior-grade coating provides additional protection against corrosion in most exterior applications.
- Self-tapping pilot point is designed for quick penetration into heavy-gauge metal.
Recommended Application
Drywall or sheathing attachment to steel 33 mil or thicker.
Installation Guidelines
- Use a standard screw gun with a depth-sensitive nose piece and use extra caution when installing with impact drivers. Suggested screw gun specification for optimal performance - Size #8 - #10 up to 2,500 RPM, Size #12 up to 1,800 RPM; however, 2,500 RPM may be used provided care is exercised to minimize influence of high heat buildup due to surface speed (see ASTM C1513, Table 5, note C).
- The Bugle Head is fully seated when the top of the head is flush with the work surface.
- The fastener must penetrate beyond the metal a minimum of three full threads.
- Overdriving my result in fastener failure or strip out of the work surface.
Trademark
©2012 GRABBER Construction Products, Inc. Scorpion® is a registered trademark of Grabber Construction Products, Inc.
