Scorpion®

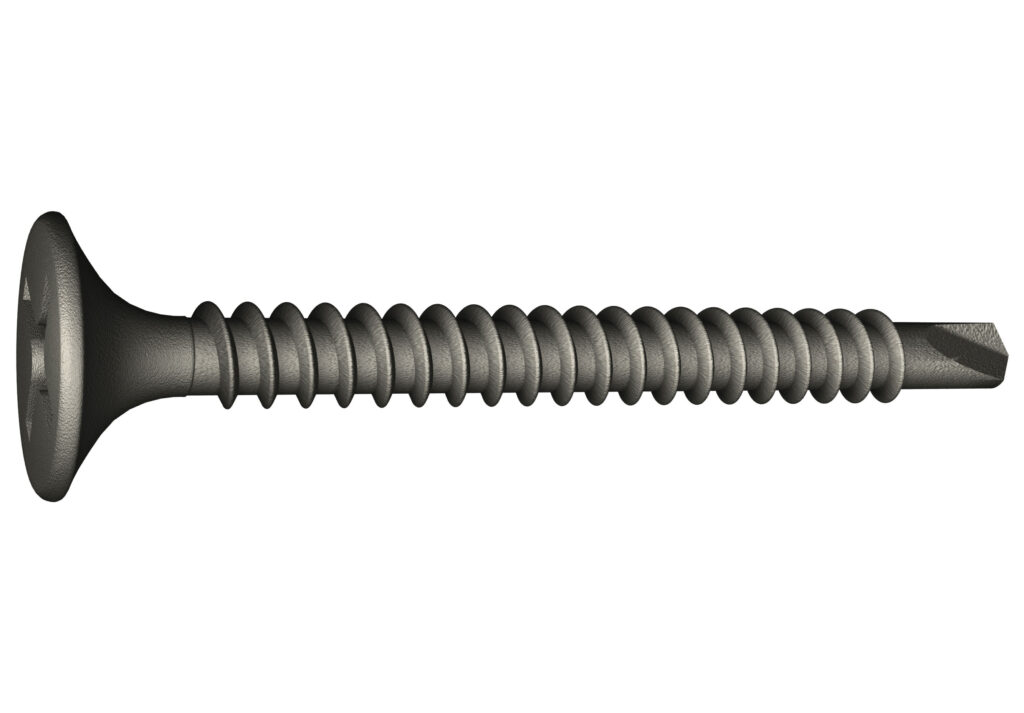

8 x 3-in Phillips, Bugle Head, Fine Thread, #3 Drill Point, NanoGard™ Screws (Bulk)
Item Number: DPXT300
Scorpion Type DPXT Drill Point exterior fasteners are designed for attaching gypsum board and sheathing to heavy gauge metal studs 33-97 mil (20-12 gauge).
Specifications
| Application | Drywall To Heavy-Gauge Metal |
|---|---|
| Bit Tip | Phillips |
| Head Type | Bugle Head |
| Thread Type | Fine |
| Coating | NanoGard™ |
| Point Type | #3 Drill Point |
| Gauge | 8 |
| Metric Gauge | 4.2 |
| Length | 3 in. |
| Head Diameter | 0.326 in. |
| Package Type | Bulk |
| Amount | 2000 |
| Threads Per Inch | 18 |
Available in other lengths
- 2 3/8 in. DPXT238
- 2 5/8 in. DPXT258
- 3 in. DPXT300
Benefits
Scorpion hex head self-drilling screws comply with ASTM C1513 for cold-formed steel framing connections. Salt spray tested according to ASTM B117 for 1000 hours; 15 cycles Kesternich per DIN 50018; no red rust. Approved for use in non-coastal areas with all pressure treated lumbers including ACQ.
Recommended Application
Drywall or sheathing attachment to steel 33 mil or thicker.
Installation Guidelines
- Use a standard screw gun with a depth-sensitive nose piece and use extra caution when installing with impact drivers. Suggested screw gun specification for optimal performance - Size #6 - #10 up to 2,500 RPM.
- The Bugle Head is fully seated when the top of the head is flush with the work surface.
- The fastener must penetrate beyond the metal a minimum of three full threads.
- Overdriving my result in fastener failure or strip out of the work surface.
