TrueShear™
Item Number: TrueShear

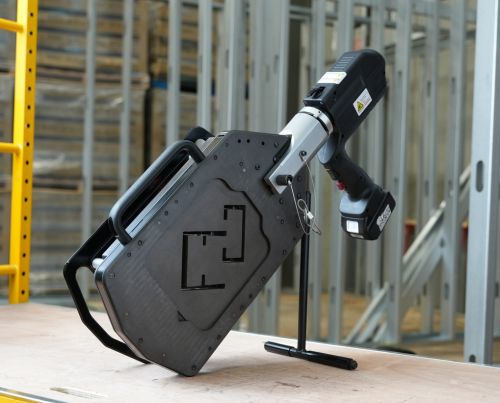

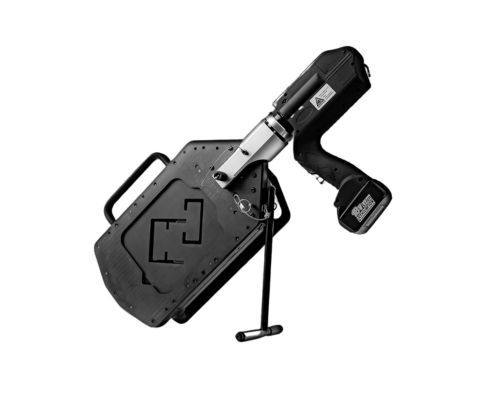

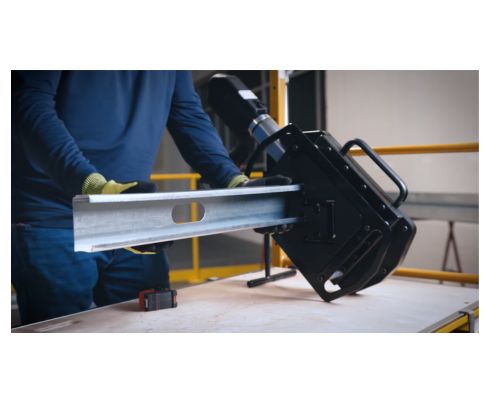

TrueShear™ is a portable, battery-powered shearing tool for 16-gauge (54 mil) to 20-gauge (33 mil) steel framing. With 12 tons of shearing force it leaves a cool, burr-free factory edge: no sparks, no flying debris, no hot work permit and no fire watch.
Request a demoView the product guide (opens in a new tab)
Why crews are switching from chop saws
Boosted productivity
- No labor tied up on hot watch, and no permits needed for hot work
- No deburring of cut edges, for a simpler workflow
- Easy to use
Improved safety
- Eliminates sparks and flying debris
- Quieter operation than abrasive cutting
- Helps protect hands and fingers
Uncompromising precision
- Every cut is straight and exact
- Quick, smooth operation
- Durable components rated for up to 100,000 precision cuts
Built for sensitive jobsites: data centers, occupied buildings and hospitals, wherever sparks, noise and fire permits slow the job down. Compact and battery powered, it moves with the crew from level to level.
Technical highlights
| Feature | Specification |
|---|---|
| Cutting capacity | 16–20 gauge (54–33 mils) structural steel members |
| Force output | 12 tons of shearing force |
| Cut quality | Cool, burr-free, factory finish |
| Power | Rechargeable 5Ah battery power unit (two batteries and charger included) |
| Noise | Low-decibel operation |
| Compatible framing | 3 5/8 in. and 6 in. members |
| Rated life | Up to 100,000 precision cuts |
What’s available
| Item | Item no. |
|---|---|

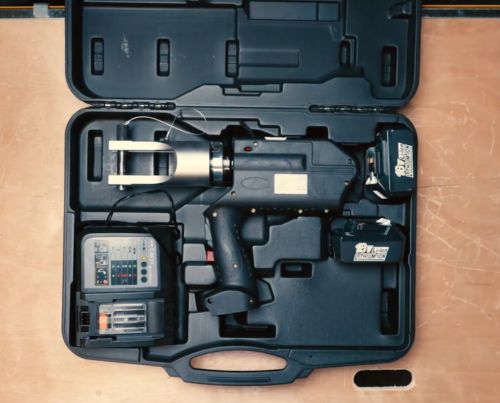

| Power unit (includes two 5Ah batteries and one charger) | G3501 |
| 3 5/8 in. TrueShear™ attachment | GTS3616 |
| 6 in. TrueShear™ attachment | GTS616 |
The power unit works with either attachment. Choose the attachment that matches your framing size.
Allowable materials
| Material | 3 5/8 in. attachment (GTS3616) | 6 in. attachment (GTS616) |
|---|---|---|

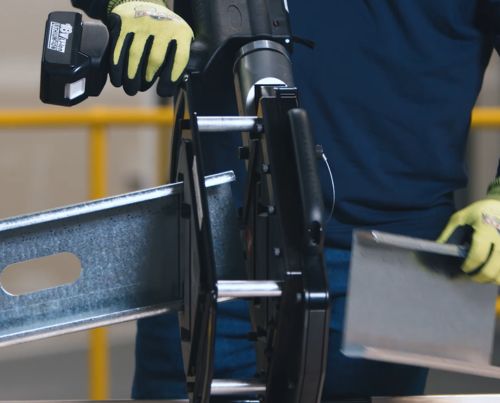

| Track | 3 5/8 in. x 1–3 in. leg | 6 in. x 1–3 in. leg |
| Slotted track | 3 5/8 in. x 1–3 in. leg | 6 in. x 1–3 in. leg |
| C-stud | 3 5/8 in. x 1 5/8 in. flange | 6 in. x 1 5/8 in. flange |

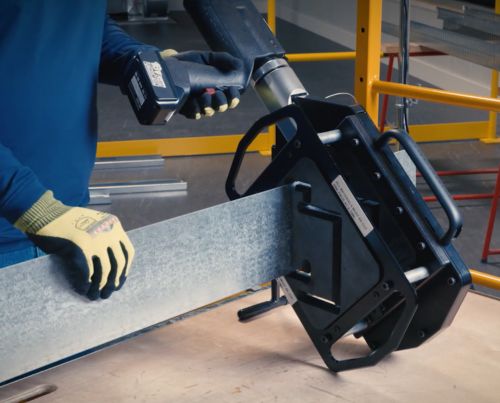

| Flat strap | 1–3 5/8 in. wide | 1–6 in. wide |

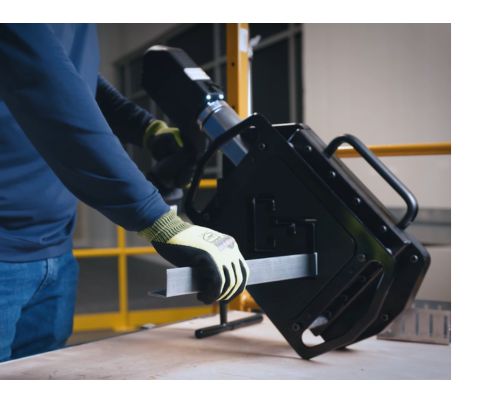

| Angle | Up to 3 in. x 3 in. | Up to 3 in. x 3 in. |
- All materials must be 16–20 gauge (structural for track, slotted track and C-stud).
- 3 5/8 in. attachment: 16-gauge C-stud, flat strap and angle must be cut one piece at a time.
- 6 in. attachment: all materials must be cut one piece at a time.
Use only listed materials. Materials or gauges not specified in the guide, especially thinner or thicker than recommended, may damage the tool and void the warranty. The product guide lists every permitted stud, track, angle and strap member by size and thickness. See the full list in the guide (opens in a new tab).
Measure once, cut once

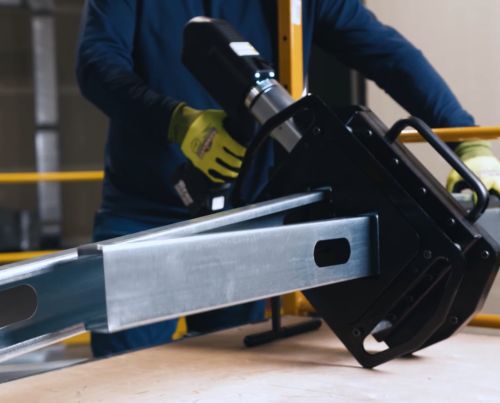

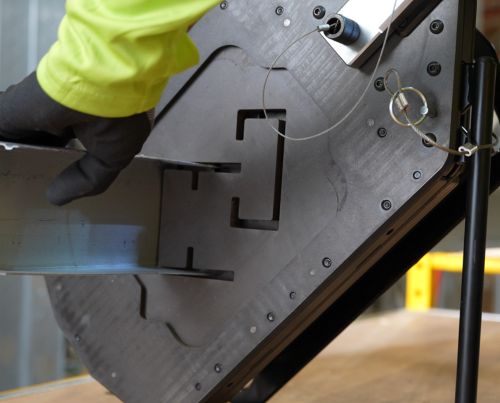

The distance from the visible cut mark to the actual cut surface is 1 inch. Add or subtract 1 inch from your target measurement, then align that adjusted mark with the inside edge of the TrueShear attachment.
Example: to cut a 10 ft. stud down to 9 ft. 6 in., mark it at 9 ft. 5 in. and align that mark with the inside edge of the attachment.
Care and maintenance
- After each use: disconnect the power source and wipe the tool with a dry cloth. Clear metal shavings and debris from vents and moving parts.
- Cutting dies: inspect regularly and replace dull or damaged dies right away.
- Periodically: check for loose screws, damaged parts or misalignment.
- Storage: keep in a clean, dry place away from moisture and corrosive materials, with the battery removed.
Safety
SAFETY FIRST: Wear appropriate personal protective equipment. Read applicable SDS and literature before handling and installation.
- Wear safety glasses with side shields, hearing protection and gloves.
- Keep hands away from the cutting area and die during operation.
- Secure the material firmly before cutting, and keep the work area well lit and free of obstructions.
- Do not operate in explosive atmospheres or near flammable materials.
- Disconnect the power source before making adjustments, changing accessories or storing the tool.
- Use only manufacturer-recommended replacement parts, and have the tool serviced by Grabber-approved, qualified personnel.
