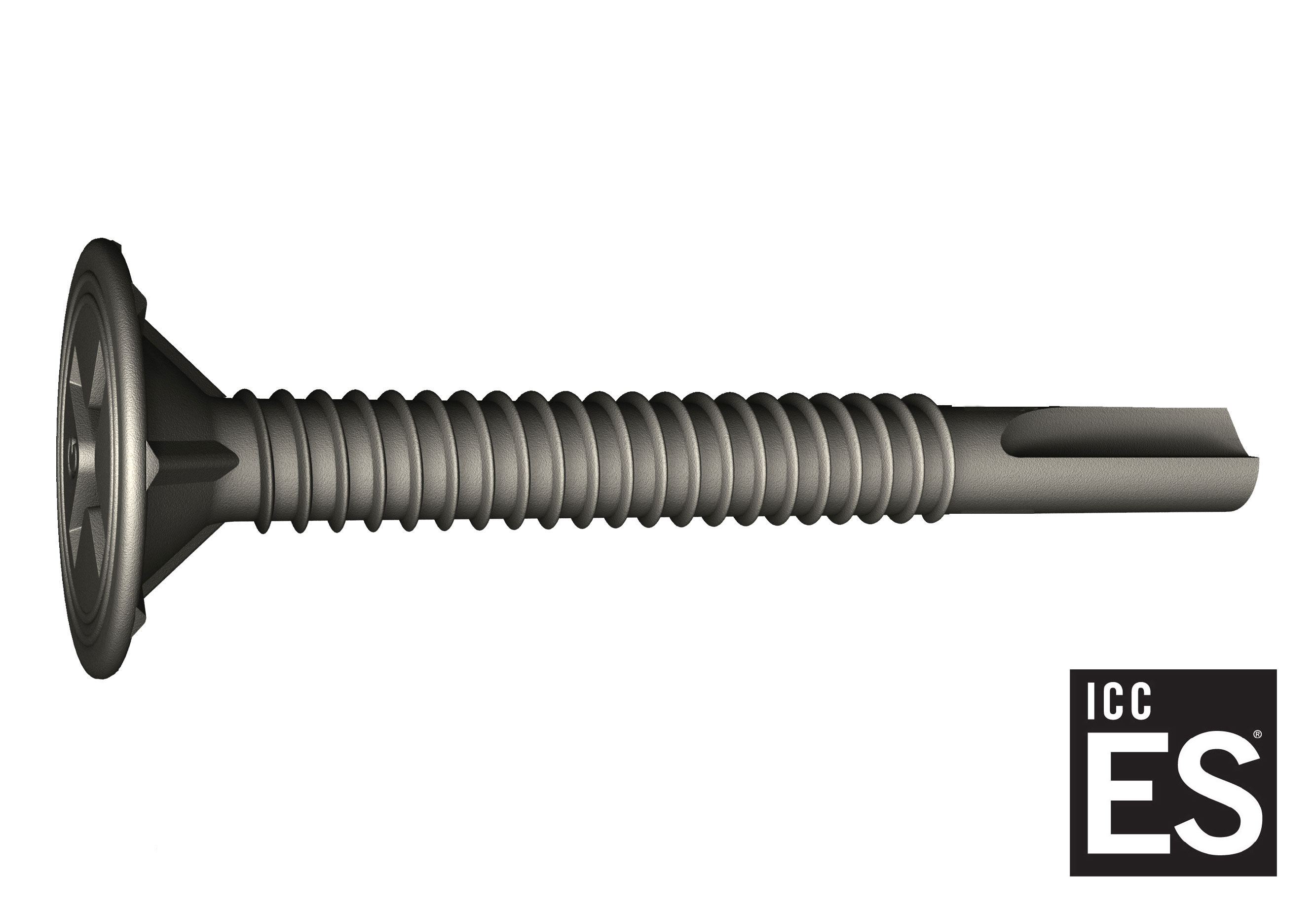

8 x 2-3/8-in Phillips, Flat Wafer Head, Fine Thread, Drill Point, GrabberGard® Gray 1500 Screws (1-LB)
Item Number: XGCB8238SD
Attaches cement board to heavy gauge steel (20-14 ga.). Features a .40 diameter head and GrabberGard® exterior coating.
Attaches cement board to heavy gauge steel (20-14 ga.). Features a .40 diameter head and GrabberGard® exterior coating.
Specifications
Application:Cement Board to Metal
Gauge:8
Bit Tip:Phillips Bit Tip
Head Type:Flat Wafer Head
Thread Type:Fine Thread
- Grabber’s Pro-Fit™ # 2 Phillips recess is a precision recess designed for better bit engagement resulting in less wobble or strip-out.
- Thin wafer head design provides for a larger load bearing surface and better holding power in sheathing to heavy gauge metal applications.
- GrabberGard® 1500 exterior-grade coating provides additional protection against corrosion in most exterior applications.
- Consistently formed extra sharp drill point starts and drills easily into heavy gauge metal framing.
-
- Use a standard screwgun with a depth sensitive nose piece. Suggested screwgun specification for optimal performance – Size #8 - #10, up to 2,500 RPM.
- The screw head is fully seated when the screw head is flush with the surface of the material.
- The fastener must penetrate beyond the metal three full thread pitches.
- Overdriving may result in failure of the fastener.
- Attach high density sheathing or cement board to steel 33 mil or thicker.
- All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 performance requirements. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.
- Attaches cement board to heavy gauge steel (20-14 ga.). Features a .40 diameter head and GrabberGard® exterior coating.
Specifications
Application:Cement Board to MetalGauge:8Bit Tip:Phillips Bit TipHead Type:Flat Wafer HeadThread Type:Fine ThreadPoint Type:Drill PointCoating:GrabberGard® Gray 1500 HourLength:2-3/8-inPackage Type:1-lbAmount:101
