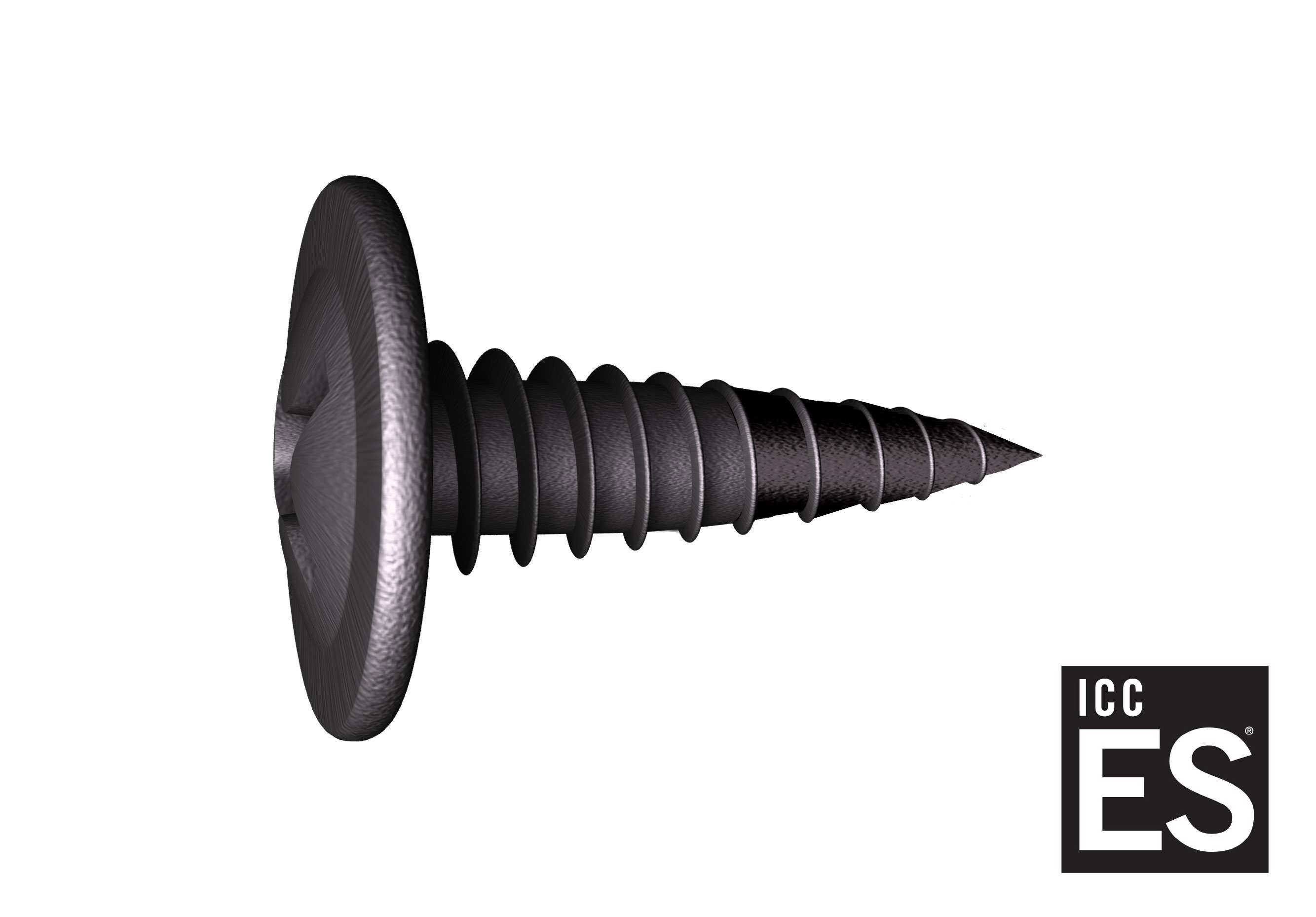

7 x 9/16-in Phillips, Modified Truss Head, Fine Thread, Vector™ Point Phosphate Screws (5-LB)
Item Number: VB31V
Designed for light gauge metal 18-30 mil (25-20ga) applications where low profile head is desired. Super sharp Vector™ point means quick and easy penetration into metal, while the modified truss head provides greater bearing surface. The right screw for K-lath installation and framing applications.
Designed for light gauge metal 18-30 mil (25-20ga) applications where low profile head is desired. Super sharp Vector™ point means quick and easy penetration into metal, while the modified truss head provides greater bearing surface. The right screw for K-lath installation and framing applications.
Specifications
Application:Metal to Metal
Bit Tip:Phillips Bit Tip
Coating:Phosphate
Gauge:7
Head Type:Modified Truss Head
- Grabber’s Pro-Fit™ # 2 Phillips recess is a precision recess designed for better bit engagement resulting in less wobble or strip-out.
- The modified truss head design provides a larger load bearing surface for better holding power. Under head serrations lock tight in metal to metal applications.
- Grabber fine thread modified truss head screws begin with the best available materials and conform to strict manufacturing requirements in thread forming.
- The super-sharp Vector™ point starts and drives up to 40% faster than most other fine thread lath and metal framing screws.
-
- Use a standard screwgun with a depth sensitive nose piece. Suggested screwgun specification for optimal performance – Size #6 - #10, up to 4,000 RPM.
- The Modified Truss Head is fully seated when the bearing surface of the head is flush with the work surface.
- The fastener must penetrate beyond the metal three full thread pitches.
- Overdriving may result in failure of the fastener or stripout within the substrate.
- Light gauge 18-30 mil (25-20ga) steel framing. K-lath installation.
- Vector™ Point - Serrations Under Head
- All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 and ASTM C1002 specifications and requirements. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.
- Designed for light gauge metal 18-30 mil (25-20ga) applications where low profile head is desired. Super sharp Vector™ point means quick and easy penetration into metal, while the modified truss head provides greater bearing surface. The right screw for K-lath installation and framing applications.
Specifications
Application:Metal to MetalBit Tip:Phillips Bit TipCoating:PhosphateGauge:7Head Type:Modified Truss HeadLength:9/16-inPackage Type:5-lbPoint Type:Vector™ PointThread Type:Fine ThreadAmount:1282
