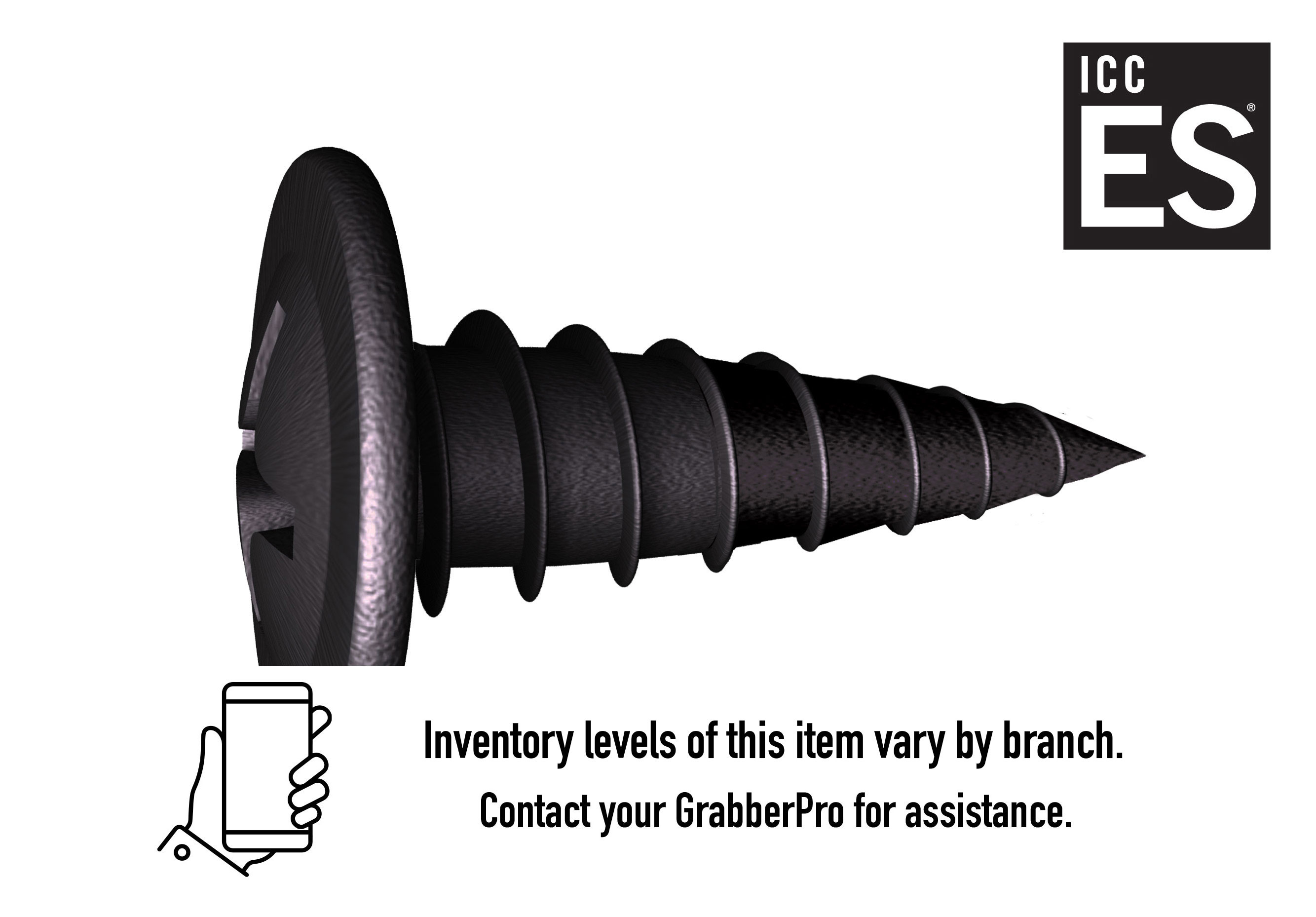

7 x 9/16-in Phillips, Reduced Modified Truss Head, Fine Thread, Vector® Point Black Phosphate Screws (Collated)
Item Number: C31DV
Metal to Metal framing or attaches slotted track 18-30 mil (25-20 ga.) to steel studs
ICC-ES Evaluated
ESR-5429 Report
Metal to Metal framing or attaches slotted track 18-30 mil (25-20 ga.) to steel studs
ICC-ES Evaluated
ESR-5429 Report
Specifications
Application:Metal to Metal
Bit Tip:Phillips Bit Tip
Coating:Black Phosphate
Gauge:7
Head Type:Reduced Modified Truss Head
- Grabber’s Pro-Fit™ #2 Phillips recess is a precision recess designed for better bit engagement resulting in less wobble or strip-out.
- The reduced modified truss head design works in conventional plastic strip collation
- Grabber sharp point reduced modified truss head screws begin with the best available materials and conform to strict manufacturing requirements in thread forming. Extra sharp threads mean screws will drive faster and will hold better.
- The super-sharp Vector™ point starts and drives up to 40% faster than most other fine thread metal framing screws.
- Use a standard screwgun with a depth sensitive nose piece. Suggested screwgun specification for optimal performance – Size #7, up to 4,000 RPM.
- The head is fully seated when the bearing surface of the head is flush with the work surface.
- The fastener must penetrate beyond the metal three full thread pitches.
- Overdriving may result in failure of the fastener or failure of the gypsum board.
Framing or slotted-track steel 18-30 mil (25-20ga.).
Vector™ Point
All GRABBER® screw products are manufactured in facilities that are ISO 9001 certified. The fasteners comply with ASTM C1513 requirements. ©2012 GRABBER Construction Products, Inc. GRABBER®, STREAKER®, LOX®, GRABBERGARD® and SCAVENGER® are registered trademarks of Grabber Construction Products, Inc.
Metal to Metal framing or attaches slotted track 18-30 mil (25-20 ga.) to steel studs
ICC-ES Evaluated
ESR-5429 Report
Specifications
Application:Metal to Metal
Bit Tip:Phillips Bit Tip
Coating:Black Phosphate
Gauge:7
Head Type:Reduced Modified Truss Head
Length:9/16-in
Package Type:Box, Collated
Point Type:Vector™ Point
Thread Type:Fine Thread
Amount:2000
