ST48

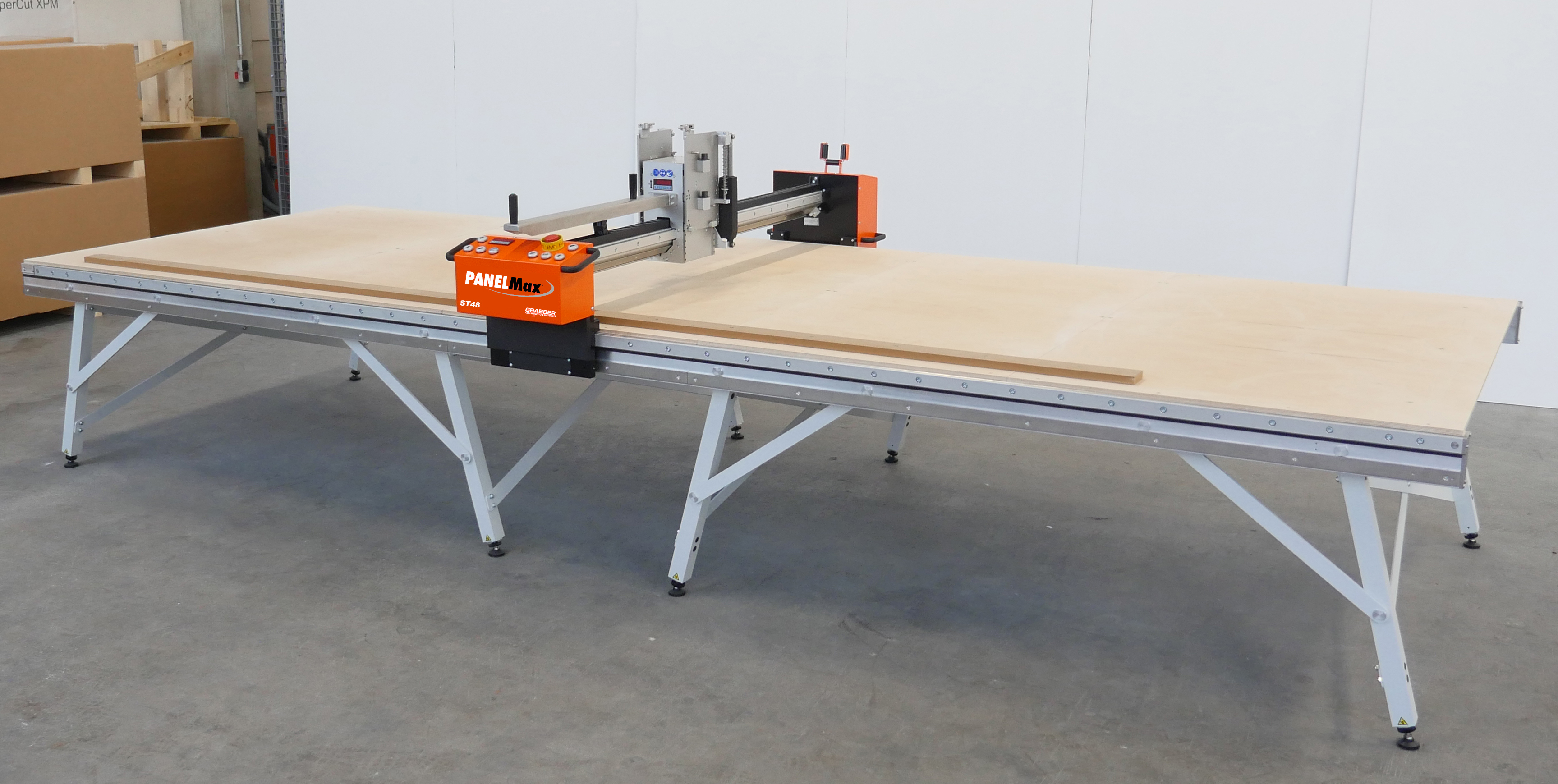

Panelmax ST48 is the industry leading shop fabrication machine capable of handling material up to 54-in x 12-ft with its table extension up to 14-ft. Tables can be connected together to process even longer material.
- ST48 includes a standard 4 x 12-ft capacity table and digital controlled traveler.
- Table item number: 860010003004
- Traveler item number: 860040021002
Contact your local GrabberPro to learn more about PanelMax and how advanced panel fabrication can change your business.
Top features
-
Standard table handles material up to 54” X 12’
-
Handles 14’ material with 55 inch table extension
-
ST48 tables can be linked together for longer material
TECHNICAL SPECIFICATIONS
CUTTING LENGTH:
UP TO 162.50"
CUTTING WIDTH:
UP TO 56"
CUTTING DEPTH:
UP TO 2.44"
MILLING DEPTH:
UP TO 2"
BOARD THICKNESS:
UP TO 3"
TOTAL WEIGHT:
APPR. 440LBS
POWER REQUIREMENTS:
110V 50/60 HZ
POWER CONSUMPTION:
2.5 KW MAX.
TABLE DIMENSIONS:
LENGTH:
169.50"
WIDTH:
76"
HEIGHT:
31.50"
1 YEAR OR 2000 HR LIMITED WARRANTY
STANDARD CONFIGURATION
- FT30 Table
- 140 CFM vacuum with pulsbac technology (auto clean)
- 1000 watt glue gun with 15 foot extension
- Two 1050 wall milling units
- Universal saw unit for diagonal and logitutinal cuts
OPTIONAL TABLE EXTENSIONS
- 4' x 8' standard
- 4’ x 10‘ with extension 1 wing set
- 4’ x 12’ with 55 inch table extension
